With the coming of summer, our first reaction to cool down is probably to turn on the air conditioner. But because the new coronavirus is still raging, we need to think about a question before turning on the air conditioner: how to use the air conditioner safely? For the sake of safety, we will introduce practical guide here, which is applicable to the centralized air conditioning and ventilation system and split air conditioning system in office, public place and residence in summer.
Centralized air conditioning system
Prepare before opening
1. Master the fresh air source and air supply scope, and strengthen personnel training.
2. Check whether the filter, surface cooler, heater (humidifier) and other equipment operate normally. Clean and disinfect the open cooling tower and air handling unit, and clean the air duct when conditions permit. The first choice is to clean and disinfect the air conditioning system by a professional organization. If possible, the hygiene quality of air supply shall be tested.
3. Keep the fresh air intake and its surrounding environment clean, and the fresh air will not be polluted.
4. Keep a certain distance between fresh air intake and exhaust port to avoid short circuit.
Management and maintenance in operation
1. Return air should be closed in medium and high risk areas. If the filter device with high efficiency or above is used in the air return outlet (pipeline) or air conditioning box, or the effective disinfection device is installed, the air return can be turned off.
2. Indoor temperature regulation is recommended to be no less than 26 ℃. If it can meet the needs of indoor temperature regulation, it is suggested that the doors and windows should not be completely closed when the air conditioner is running.
3. When the air conditioning system is used in densely populated places, the indoor air flow shall be strengthened, and the ventilation devices such as windows, doors or fans can be opened first, or the air conditioning shall be ventilated for about 20-30 minutes every 2-3 hours of operation.
4. For shopping malls, office buildings, underground garages and other places with large flow of people, ventilation should be strengthened; and after the end of business every day, the fresh air and exhaust system of air conditioning system should continue to operate for a period of time.
5. Strengthen the sanitation management of air treatment unit, fan coil unit and other condensate water, cooling tower cooling water.
6. Regularly clean, disinfect or replace the filter, air outlet, air handling unit, surface cooler, heater (humidifier), condensate pan and other equipment and components of the operating air conditioning system.
7. The U-shaped pipes of the water pipe, the water seal of the air treatment device, the floor drain of the toilet and the condensate drain of the air conditioning unit shall be inspected regularly, and the water shall be replenished in time in case of water shortage.

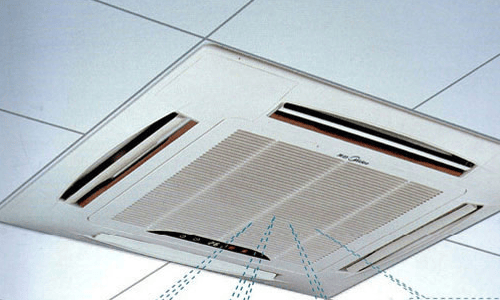

Fancoil System & Ventilation System
Prepare before opening
1. Master the source and range of fresh air supply.
2. Check whether the filter, surface cooler, heater (humidifier), fan coil and other equipment operate normally. Clean and disinfect the open cooling tower, air treatment unit, condensate pan, etc., and clean the air duct when conditions permit. The cleaning and disinfection of air conditioning system should be carried out by professional organizations.
3. Ensure that the fresh air is directly from the outside, and it is forbidden to take air from the machine room, corridor and ceiling. Ensure that the fresh air intake and its surrounding environment are clean and the fresh air is not polluted.
4. The fresh air system should be operated all day.
5. Keep a certain distance between fresh air intake and exhaust port to avoid short circuit.
6. Ensure the normal operation of exhaust system.
7. For deep rooms, measures shall be taken to ensure the ventilation of the internal area; if the fresh air volume is insufficient (less than 30m3 / h. national standard requirements), the personnel density shall be reduced.
Management and maintenance in operation.
1. Indoor temperature regulation is recommended to be no less than 26 ℃. If the indoor thermal comfort can be satisfied, it is recommended to open the door or window when the air conditioner is running.
2. Strengthen the ventilation of shopping malls, office buildings, underground garages and other places with large flow of people; and the air conditioning system shall continue to operate for a period of time after the end of business every day.
3. Increase the frequency of ventilation and air exchange in densely populated places. When the air conditioning system is in use, you can open windows, open doors, turn on air exchange fans and other air exchange devices, or ventilate for about 20-30 minutes every 2-3 hours of operation.
4. Strengthen the sanitation management of the air conditioning system condensate and cooling water and other pollution prone areas.
5. Regularly clean, disinfect or replace the cooling tower, air handling unit, air supply outlet, condensate pan and other equipment and components of the operating air conditioning system.
6. Strengthen the inspection of U-shaped pipes for water pipes, water seals of air treatment devices, floor drains in toilets, etc., and make up water in time to prevent air mixing in different floors.

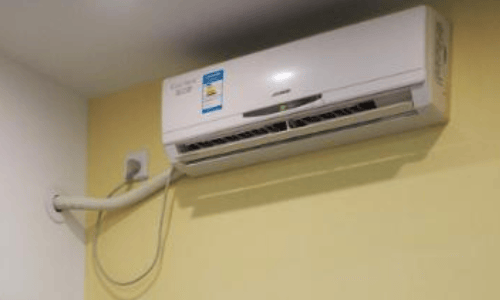

Split air conditioner
Prepare before opening
1. Disconnect the power supply of air conditioner.
2. Wipe the dust on the air conditioner shell with a damp cloth without dripping.
3. Open the cover plate according to the air conditioning instructions, remove the filter screen, wash the dust on the filter screen with tap water, and dry it by air or dry cloth.
4. Install the filter screen and close the cover plate.
5. Turn on the power, then turn on the cooling mode of the air conditioner, and check whether the air conditioner can operate normally.
Management and maintenance in operation
1. Before using the split air conditioner every day, the doors and windows shall be opened for ventilation for 20-30 minutes, then the air conditioner shall be opened, and it is recommended to adjust the maximum air volume for more than 5-10 minutes before closing the doors and windows; after the split air conditioner is shut down, the doors and windows shall be opened for ventilation.
2. For long-term use of split air conditioning and densely populated areas (such as meeting rooms), the air conditioning shall be ventilated for about 20-30 minutes every 2-3 hours of operation.
3. Indoor temperature regulation is recommended to be no less than 26 ℃. If it can meet the needs of indoor temperature regulation, it is suggested that the doors and windows should not be completely closed when the air conditioner is running.
Air conditioning system out of service in case of the the following situation
When novel coronavirus pneumonia cases were confirmed and suspected cases were found on the spot, the following measures should be taken:
1. Immediately shut down the central air conditioning and ventilation system corresponding to the activity area of confirmed cases and suspected cases.
2. Under the guidance of the local disease control department, the central air conditioning ventilation system in the above areas shall be disinfected and cleaned by force immediately, and can be re used only after passing the hygiene inspection and evaluation.
