Short answer: Mounting an outdoor TV yourself takes 3–5 hours for a typical install and saves $250–$500 in labor. The core steps are (1) choose the right mount for your wall type and TV weight, (2) verify structural backing with a stud finder or masonry drill test, (3) run power and data cables before lifting the TV, (4) attach the mount bracket to the wall first, then lift the TV onto the bracket, and (5) weather-seal every penetration. A BYTEFREE BF-55ODTV at 30 kg (66 lb) is well within DIY territory — you want two people for the final lift, but nothing about the process requires a pro.
Step 1: Know Your TV and Your Wall
Before buying anything, document two specs:
Your TV's VESA pattern and weight. For a BYTEFREE BF-55ODTV: 400×400 VESA, 30 kg (66 lb). Most 55" outdoor TVs are 400×400; 65–75" units are often 600×400 or 400×400. The number refers to the screw-hole spacing on the TV's rear mount points.
Your wall type. Five common outdoor wall types, each with different mounting requirements:
Never mount an outdoor TV to bare siding, bare stucco, or drywall — those materials aren't structural and the TV will pull out within a year as mount weight cycles with wind.
Step 2: Choose the Right Mount
Four questions determine which outdoor mount to buy:
1. Fixed, tilt, or full-motion articulating?
Fixed: Cheapest ($60–120), sits flat against wall, no adjustment. Good if the viewing position is centered and stable.
Tilt: Adds ±15° vertical tilt ($100–180). Useful for high mounts (above-fireplace, soffit) where you need to angle the screen down.
Full-motion articulating: Extends out from the wall and swivels ($180–350). Best for outdoor use — lets you angle the TV for different seating positions and pull it out for cleaning.
For outdoor installs, full-motion articulating is almost always the right choice. You can pull the TV away from the wall to access cables, clean the vents, and inspect the rear gasket without dismounting.
2. Rated for outdoor / marine use? Indoor mounts corrode within 1–2 winters of outdoor exposure. Buy explicitly outdoor-rated mounts — stainless steel (316 grade ideally), marine-coated aluminum, or powder-coated steel with UV-stable finish. Brands that make real outdoor mounts: Peerless-AV, SunBrite (matches their TVs), Ematic, Echogear outdoor series, Kanto outdoor line.
3. Load capacity with safety margin. Buy a mount rated for 150% of your TV weight. A 66-lb BYTEFREE needs a mount rated for at least 100 lb. Most outdoor 55" articulating mounts rate 80–120 lb — fine for BYTEFREE-class TVs.
4. VESA match. Confirm the mount supports your TV's VESA pattern (400×400 for BYTEFREE and most 55" outdoor TVs). Universal mounts typically cover 200×200 through 600×400.
Typical recommended mount for a BYTEFREE BF-55ODTV: Echogear Outdoor Full-Motion ($220) or Peerless-AV PA762 ($310). Both handle 66 lb, both rated for outdoor use, both adjust for viewing angle.
Step 3: Gather the Parts
Complete DIY parts list for a typical 55" outdoor TV mount on wood-stud-behind-siding construction:
For masonry installs, swap lag bolts for wedge anchors ($15) and add a masonry drill bit ($20).
Tools you'll need: stud finder or multi-detector, drill with masonry bit (if applicable), ratchet with socket for lag bolts, level, tape measure, pencil, caulk gun, ladder.
Step 4: The Install Sequence
Follow this order. Skipping steps is how DIY installs fail.
4.1 Mark the mount location
Pick the mount height. Standard rule: the center of the screen should be at eye level from primary seating position — typically 48–55 inches above the patio floor for standard outdoor sofas. Measure and mark the horizontal centerline in pencil.
Use a stud finder to locate wood studs (for stud-behind-siding walls). For masonry, skip this step — the wall itself is structural.
4.2 Drill pilot holes and install mount bracket
For wood studs behind siding:
Drill 1/4" pilot holes through the siding into the center of each stud
Apply a bead of silicone sealant around each hole
Attach the mount's wall plate with 3/8" × 3" lag bolts + washers, driving into studs
Torque to snug — not crush. You want solid contact without deforming the siding.
For brick or concrete block:
Drill 3/8" × 3" holes with a masonry bit into solid brick (avoid mortar joints)
Blow out masonry dust with canned air
Insert wedge anchors, partially extended
Attach mount wall plate with anchor bolts
Tighten anchor bolts to activate the wedge expansion
For stucco over wood frame:
Locate studs through the stucco using a stud finder (many don't work well through stucco — a pin-probe type is more reliable)
Drill through stucco into studs with a masonry bit, then switch to wood bit
Apply sealant around holes
Lag-bolt into the studs
Verify the mount bracket is level before committing to tightened screws.
4.3 Run cables to the TV location
Before lifting the TV onto the bracket, run these cables from the wall penetration to wherever you want them to terminate:
Power — 14-gauge outdoor-rated cable to a nearby weather-rated GFCI outlet. If there isn't one, you'll need a licensed electrician to add one (this is the only part of the install most DIYers shouldn't DIY).
Cat6 Ethernet — outdoor-rated Cat6 to your router / switch location. Terminate both ends with RJ45 or keystone jacks.
HDMI runs (optional) — if you have sources (Apple TV, Xbox, cable box) that should live indoors but show on the outdoor TV, run HDMI-over-Cat6 extenders rather than long-run HDMI.
Penetrate the wall with a bellows-style cable entry grommet. Drill a 1" hole through the siding/stucco behind the TV location, push the grommet through, and seal around it with silicone. This is the single most important weatherproofing step in the entire install — a bad seal here causes moisture to track inside your wall for years.
4.4 Lift the TV onto the mount (two-person job)
With the wall plate installed and cables routed:
Attach the TV-side plates to the TV's VESA mount points (usually requires removing 4 factory screws and replacing with the mount's longer bolts)
One person stabilizes the mount's arm extended outward
Both people lift the TV in unison and engage it onto the mount
Secure any locking pins, levers, or safety screws the mount includes
BYTEFREE weighs 30 kg. Don't solo this step — the lift itself is manageable, but aligning the TV plate with the mount arm while supporting 66 lb requires four hands.
4.5 Connect cables and verify
Plug in power, HDMI, Cat6. Turn on the TV and verify it boots.
4.6 Weather-seal every penetration
Every screw hole, cable entry, and bracket-to-wall contact point needs silicone sealant (Dow 795 or equivalent) applied around the perimeter. This is tedious and looks overkill. It's not — bad sealing is the #1 reason DIY outdoor TV installs fail at year 2.
4.7 Install surge protector
Plug the TV into an outdoor-rated surge protector (Furman SS-6B Outdoor, Tripp Lite outdoor series, similar). Plug the surge protector into the GFCI outlet. Outdoor power has more transient voltage events than indoor power — lightning, HVAC cycling, pool pump startup. A $60 surge protector saves a $1,499 TV.
Common DIY Mistakes to Avoid
Six that I've seen kill installs:
1. Mounting to drywall behind siding. Drywall has no structural rating. TVs mounted to drywall pull out within months. Always verify wood studs or solid masonry behind the siding.
2. Forgetting weather sealing around penetrations. A hole through siding without sealant becomes a moisture highway into the wall. 2 years later you have rot, not just a TV problem.
3. Running power via extension cord. Code-violating, fire-risk, and insurance-voiding. Hire an electrician for the outlet install even if you DIY everything else.
4. Skipping the surge protector. Outdoor electrical is inherently spikier than indoor. The first summer thunderstorm that takes out your TV's power board will cost more than every DIY install part combined.
5. Running HDMI more than 25 feet without an extender. Standard HDMI is unreliable past 25 ft. Use HDMI-over-Cat6 extenders for any longer run.
6. Mounting above a fireplace without a pull-down articulating mount. Viewing angle is miserable, and fireplace heat stresses the TV's cooling system. If you must mount above a fireplace, use a pull-down articulating mount and verify the TV's operating temp spec tolerates the fireplace heat.
Time Budget for a Realistic DIY Install
A honest timeline for an average DIYer on a pergola-covered patio:
Planning and parts sourcing: 1–2 hours (one evening)
Parts delivery: 2–5 days
Day of install — prep and mount bracket: 1 hour
Day of install — cable runs: 1–2 hours (longer for long Cat6 runs)
Day of install — TV lift and connect: 30 minutes
Day of install — sealing and cleanup: 30 minutes
Total on-day install time: 3–5 hours
If you're doing a run from an indoor router to the patio TV through a basement and up the wall, add 1–2 hours for cable routing. If you need to drill through brick for the first time, add 30 minutes of learning curve.
When to Hire a Pro Instead
DIY is the right call for maybe 70% of outdoor TV installs. Hire a pro if:
You don't have an existing outdoor GFCI outlet (electrician required anyway)
Your install involves drilling through brick/stone veneer with backing substrate you can't identify
You're mounting 65" or larger (heavier lift, needs pro equipment)
The TV goes above a fireplace or in a challenging architectural location
Your install includes a motorized articulating mount with complex wiring
You want a single entity warranty on the install labor
Install labor from a qualified AV integrator runs $250–$500 for a standard 55" mount, more for complex installs. For a $1,499 TV like the BYTEFREE, DIY makes financial sense if your install is straightforward.
Frequently Asked Questions
Can I mount an outdoor TV on vinyl siding?
No, not directly. Vinyl siding has no structural rating. You need to locate the wood studs behind the vinyl and mount into those, using longer lag bolts to compensate for the siding thickness. Seal around the siding hole with silicone.
How high should I mount my outdoor TV?
Center of screen at eye level from primary seating — typically 48–55 inches above the patio floor for standard outdoor sofas. Too-high mounting (common above fireplaces or up into soffits) forces viewers to tilt heads up, which is uncomfortable and makes any TV feel smaller than it is.
Do I need an electrician to install an outdoor outlet?
Usually yes, if you don't already have one. Outdoor outlets must be GFCI-protected, weather-rated boxes, and properly bonded. Electricians typically charge $200–$400 for a dedicated outdoor circuit, which is worth it for code compliance and homeowner's insurance validity.
Can I mount an outdoor TV to a wood fence?
Only if the fence post is structurally sound and the fence is rated to carry the TV weight + wind load. Most residential wood fences aren't. Better options: mount to a dedicated 4×4 post set in concrete, or to the house's exterior wall.
What size stud spacing do I need?
Most US homes use 16" on-center stud spacing. Standard articulating mounts span 16–24" and engage 2 studs. Verify by scanning the wall with a stud finder before drilling — some older homes use 24" on-center or non-standard layouts.
How long does the DIY install process take?
Plan for 3–5 hours on install day, plus 1–2 hours upfront for planning and parts sourcing. First-time installers take the upper end; experienced DIYers with a straightforward install complete in 3 hours.
Bottom Line
Mounting an outdoor TV yourself is well within DIY territory for anyone comfortable with drilling, basic electrical (limited to plugging things in), and reading instructions carefully. Plan for 3–5 hours of install time, $280–$500 in parts beyond the TV itself, and one helper for the final lift. Use an outdoor-rated articulating mount, mount to studs or masonry (never drywall), weather-seal every penetration with silicone, and add a surge protector.
For a BYTEFREE BF-55ODTV at $1,499 and 66 lb, DIY install saves roughly $300–$500 versus professional labor — money that covers a better soundbar, a surge protector, and a dedicated Cat6 run. Done right, the install lasts the TV's full 7–10 year outdoor life.
→ Shop the ByteFree BF-55ODTV at bytefree.net — 55″ 4K, IP55, –22°F to 122°F operating range, all-metal chassis, partial-sun rated, $1,499.
| Quick takeaway: The three DIY mistakes that wreck outdoor TV installs are mounting to drywall instead of studs/masonry, failing to weatherproof cable penetrations, and forgetting to add surge protection. Avoid those three and a DIY install performs identically to a pro install. Plan on 3–5 hours, $280–$370 in parts (mount, sealant, surge protector, Cat6), and one helper for the final lift. |
Step 1: Know Your TV and Your Wall
Before buying anything, document two specs:
Your TV's VESA pattern and weight. For a BYTEFREE BF-55ODTV: 400×400 VESA, 30 kg (66 lb). Most 55" outdoor TVs are 400×400; 65–75" units are often 600×400 or 400×400. The number refers to the screw-hole spacing on the TV's rear mount points.
Your wall type. Five common outdoor wall types, each with different mounting requirements:
| Wall type | Mounting approach | Typical strength |
| Wood stud behind clapboard / siding | Lag bolts into 2+ studs | 200+ lb capacity |
| Brick or CMU block | Wedge anchors in drilled holes | 200+ lb per anchor |
| Stucco over wood frame | Find studs underneath, use longer screws | 200+ lb into studs |
| Stone veneer / cladding | Drill into backing substrate (brick/concrete) | Variable |
| Concrete or poured concrete | Wedge or sleeve anchors | 300+ lb per anchor |
Step 2: Choose the Right Mount
Four questions determine which outdoor mount to buy:
1. Fixed, tilt, or full-motion articulating?
Fixed: Cheapest ($60–120), sits flat against wall, no adjustment. Good if the viewing position is centered and stable.
Tilt: Adds ±15° vertical tilt ($100–180). Useful for high mounts (above-fireplace, soffit) where you need to angle the screen down.
Full-motion articulating: Extends out from the wall and swivels ($180–350). Best for outdoor use — lets you angle the TV for different seating positions and pull it out for cleaning.
For outdoor installs, full-motion articulating is almost always the right choice. You can pull the TV away from the wall to access cables, clean the vents, and inspect the rear gasket without dismounting.
2. Rated for outdoor / marine use? Indoor mounts corrode within 1–2 winters of outdoor exposure. Buy explicitly outdoor-rated mounts — stainless steel (316 grade ideally), marine-coated aluminum, or powder-coated steel with UV-stable finish. Brands that make real outdoor mounts: Peerless-AV, SunBrite (matches their TVs), Ematic, Echogear outdoor series, Kanto outdoor line.
3. Load capacity with safety margin. Buy a mount rated for 150% of your TV weight. A 66-lb BYTEFREE needs a mount rated for at least 100 lb. Most outdoor 55" articulating mounts rate 80–120 lb — fine for BYTEFREE-class TVs.
4. VESA match. Confirm the mount supports your TV's VESA pattern (400×400 for BYTEFREE and most 55" outdoor TVs). Universal mounts typically cover 200×200 through 600×400.
Typical recommended mount for a BYTEFREE BF-55ODTV: Echogear Outdoor Full-Motion ($220) or Peerless-AV PA762 ($310). Both handle 66 lb, both rated for outdoor use, both adjust for viewing angle.
Step 3: Gather the Parts
Complete DIY parts list for a typical 55" outdoor TV mount on wood-stud-behind-siding construction:
| Item | Typical cost |
| Outdoor articulating wall mount | $180–250 |
| 4× 3/8" × 3" lag bolts with washers | $8 |
| Outdoor-rated surge protector | $60–100 |
| Cat6 outdoor-rated cable (50 ft) | $30 |
| 14-gauge outdoor extension cable + junction box | $40 |
| HDMI weather-sealed connectors (optional, for detachable runs) | $20 |
| Silicone outdoor sealant (Dow 795 or equivalent) | $15 |
| Cable entry grommet (bellows-style) | $10 |
| Weather-rated recessed electrical box | $25 |
| Parts total | $388–$498 |
Tools you'll need: stud finder or multi-detector, drill with masonry bit (if applicable), ratchet with socket for lag bolts, level, tape measure, pencil, caulk gun, ladder.
Step 4: The Install Sequence
Follow this order. Skipping steps is how DIY installs fail.
4.1 Mark the mount location
Pick the mount height. Standard rule: the center of the screen should be at eye level from primary seating position — typically 48–55 inches above the patio floor for standard outdoor sofas. Measure and mark the horizontal centerline in pencil.
Use a stud finder to locate wood studs (for stud-behind-siding walls). For masonry, skip this step — the wall itself is structural.
4.2 Drill pilot holes and install mount bracket
For wood studs behind siding:
Drill 1/4" pilot holes through the siding into the center of each stud
Apply a bead of silicone sealant around each hole
Attach the mount's wall plate with 3/8" × 3" lag bolts + washers, driving into studs
Torque to snug — not crush. You want solid contact without deforming the siding.
For brick or concrete block:
Drill 3/8" × 3" holes with a masonry bit into solid brick (avoid mortar joints)
Blow out masonry dust with canned air
Insert wedge anchors, partially extended
Attach mount wall plate with anchor bolts
Tighten anchor bolts to activate the wedge expansion
For stucco over wood frame:
Locate studs through the stucco using a stud finder (many don't work well through stucco — a pin-probe type is more reliable)
Drill through stucco into studs with a masonry bit, then switch to wood bit
Apply sealant around holes
Lag-bolt into the studs
Verify the mount bracket is level before committing to tightened screws.
4.3 Run cables to the TV location
Before lifting the TV onto the bracket, run these cables from the wall penetration to wherever you want them to terminate:
Power — 14-gauge outdoor-rated cable to a nearby weather-rated GFCI outlet. If there isn't one, you'll need a licensed electrician to add one (this is the only part of the install most DIYers shouldn't DIY).
Cat6 Ethernet — outdoor-rated Cat6 to your router / switch location. Terminate both ends with RJ45 or keystone jacks.
HDMI runs (optional) — if you have sources (Apple TV, Xbox, cable box) that should live indoors but show on the outdoor TV, run HDMI-over-Cat6 extenders rather than long-run HDMI.
Penetrate the wall with a bellows-style cable entry grommet. Drill a 1" hole through the siding/stucco behind the TV location, push the grommet through, and seal around it with silicone. This is the single most important weatherproofing step in the entire install — a bad seal here causes moisture to track inside your wall for years.
4.4 Lift the TV onto the mount (two-person job)
With the wall plate installed and cables routed:
Attach the TV-side plates to the TV's VESA mount points (usually requires removing 4 factory screws and replacing with the mount's longer bolts)
One person stabilizes the mount's arm extended outward
Both people lift the TV in unison and engage it onto the mount
Secure any locking pins, levers, or safety screws the mount includes
BYTEFREE weighs 30 kg. Don't solo this step — the lift itself is manageable, but aligning the TV plate with the mount arm while supporting 66 lb requires four hands.
4.5 Connect cables and verify
Plug in power, HDMI, Cat6. Turn on the TV and verify it boots.
4.6 Weather-seal every penetration
Every screw hole, cable entry, and bracket-to-wall contact point needs silicone sealant (Dow 795 or equivalent) applied around the perimeter. This is tedious and looks overkill. It's not — bad sealing is the #1 reason DIY outdoor TV installs fail at year 2.
4.7 Install surge protector
Plug the TV into an outdoor-rated surge protector (Furman SS-6B Outdoor, Tripp Lite outdoor series, similar). Plug the surge protector into the GFCI outlet. Outdoor power has more transient voltage events than indoor power — lightning, HVAC cycling, pool pump startup. A $60 surge protector saves a $1,499 TV.
Common DIY Mistakes to Avoid
Six that I've seen kill installs:
1. Mounting to drywall behind siding. Drywall has no structural rating. TVs mounted to drywall pull out within months. Always verify wood studs or solid masonry behind the siding.
2. Forgetting weather sealing around penetrations. A hole through siding without sealant becomes a moisture highway into the wall. 2 years later you have rot, not just a TV problem.
3. Running power via extension cord. Code-violating, fire-risk, and insurance-voiding. Hire an electrician for the outlet install even if you DIY everything else.
4. Skipping the surge protector. Outdoor electrical is inherently spikier than indoor. The first summer thunderstorm that takes out your TV's power board will cost more than every DIY install part combined.
5. Running HDMI more than 25 feet without an extender. Standard HDMI is unreliable past 25 ft. Use HDMI-over-Cat6 extenders for any longer run.
6. Mounting above a fireplace without a pull-down articulating mount. Viewing angle is miserable, and fireplace heat stresses the TV's cooling system. If you must mount above a fireplace, use a pull-down articulating mount and verify the TV's operating temp spec tolerates the fireplace heat.
Time Budget for a Realistic DIY Install
A honest timeline for an average DIYer on a pergola-covered patio:
Planning and parts sourcing: 1–2 hours (one evening)
Parts delivery: 2–5 days
Day of install — prep and mount bracket: 1 hour
Day of install — cable runs: 1–2 hours (longer for long Cat6 runs)
Day of install — TV lift and connect: 30 minutes
Day of install — sealing and cleanup: 30 minutes
Total on-day install time: 3–5 hours
If you're doing a run from an indoor router to the patio TV through a basement and up the wall, add 1–2 hours for cable routing. If you need to drill through brick for the first time, add 30 minutes of learning curve.
When to Hire a Pro Instead
DIY is the right call for maybe 70% of outdoor TV installs. Hire a pro if:
You don't have an existing outdoor GFCI outlet (electrician required anyway)
Your install involves drilling through brick/stone veneer with backing substrate you can't identify
You're mounting 65" or larger (heavier lift, needs pro equipment)

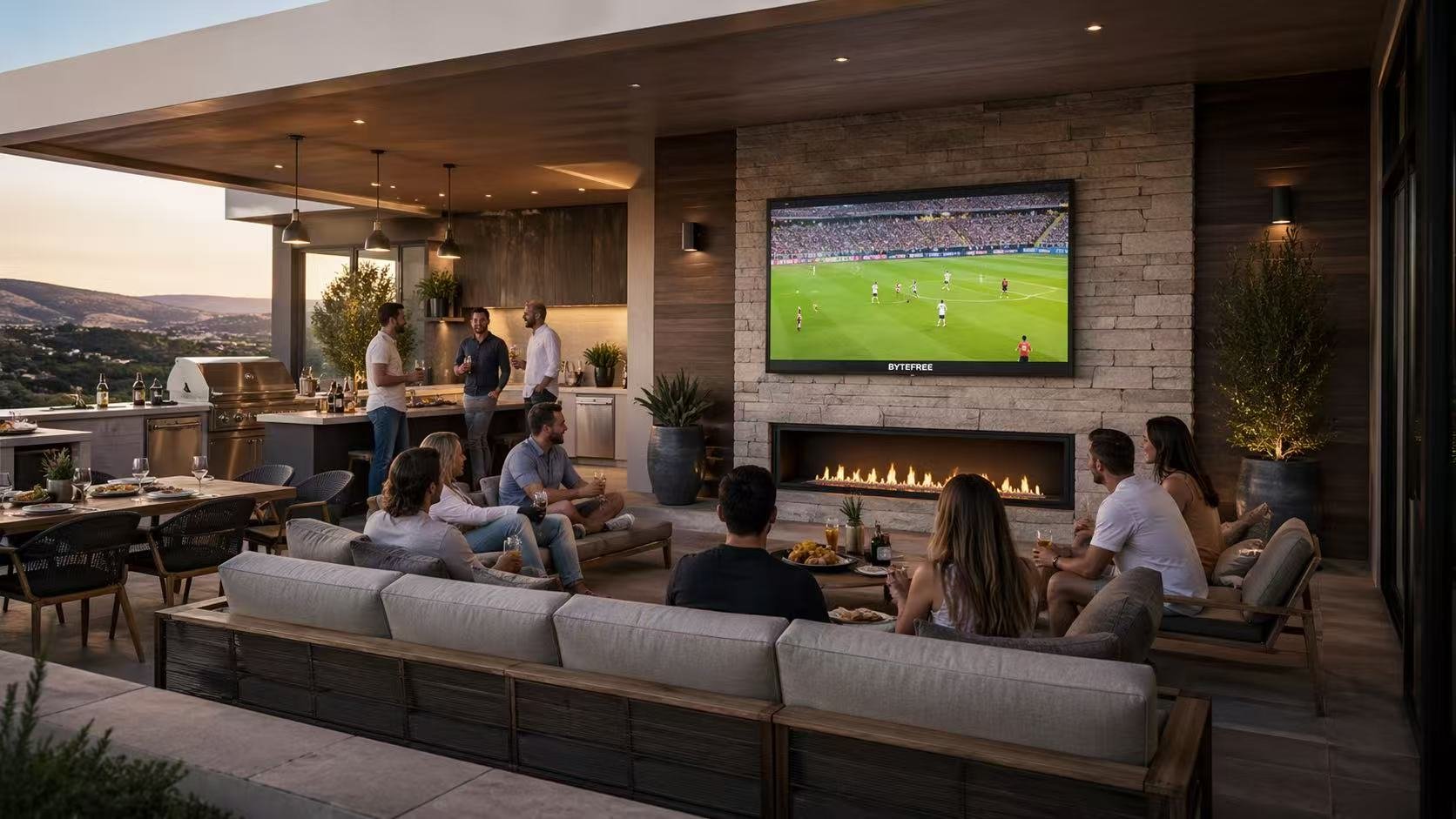

The TV goes above a fireplace or in a challenging architectural location
Your install includes a motorized articulating mount with complex wiring
You want a single entity warranty on the install labor
Install labor from a qualified AV integrator runs $250–$500 for a standard 55" mount, more for complex installs. For a $1,499 TV like the BYTEFREE, DIY makes financial sense if your install is straightforward.
Frequently Asked Questions
Can I mount an outdoor TV on vinyl siding?
No, not directly. Vinyl siding has no structural rating. You need to locate the wood studs behind the vinyl and mount into those, using longer lag bolts to compensate for the siding thickness. Seal around the siding hole with silicone.
How high should I mount my outdoor TV?
Center of screen at eye level from primary seating — typically 48–55 inches above the patio floor for standard outdoor sofas. Too-high mounting (common above fireplaces or up into soffits) forces viewers to tilt heads up, which is uncomfortable and makes any TV feel smaller than it is.
Do I need an electrician to install an outdoor outlet?
Usually yes, if you don't already have one. Outdoor outlets must be GFCI-protected, weather-rated boxes, and properly bonded. Electricians typically charge $200–$400 for a dedicated outdoor circuit, which is worth it for code compliance and homeowner's insurance validity.
Can I mount an outdoor TV to a wood fence?
Only if the fence post is structurally sound and the fence is rated to carry the TV weight + wind load. Most residential wood fences aren't. Better options: mount to a dedicated 4×4 post set in concrete, or to the house's exterior wall.
What size stud spacing do I need?
Most US homes use 16" on-center stud spacing. Standard articulating mounts span 16–24" and engage 2 studs. Verify by scanning the wall with a stud finder before drilling — some older homes use 24" on-center or non-standard layouts.
How long does the DIY install process take?
Plan for 3–5 hours on install day, plus 1–2 hours upfront for planning and parts sourcing. First-time installers take the upper end; experienced DIYers with a straightforward install complete in 3 hours.
Bottom Line
Mounting an outdoor TV yourself is well within DIY territory for anyone comfortable with drilling, basic electrical (limited to plugging things in), and reading instructions carefully. Plan for 3–5 hours of install time, $280–$500 in parts beyond the TV itself, and one helper for the final lift. Use an outdoor-rated articulating mount, mount to studs or masonry (never drywall), weather-seal every penetration with silicone, and add a surge protector.
For a BYTEFREE BF-55ODTV at $1,499 and 66 lb, DIY install saves roughly $300–$500 versus professional labor — money that covers a better soundbar, a surge protector, and a dedicated Cat6 run. Done right, the install lasts the TV's full 7–10 year outdoor life.
→ Shop the ByteFree BF-55ODTV at bytefree.net — 55″ 4K, IP55, –22°F to 122°F operating range, all-metal chassis, partial-sun rated, $1,499.
Last edited:
