What Is IP55 Rating? Why It Matters for Outdoor TVs

[olena]

TL;DR:

IP55 means "protected against dust ingress" (the first 5) and "protected against water jets from any direction" (the second 5). It's the minimum outdoor rating for any TV that will see rain, humidity, or direct weather. For 80% of U.S. residential outdoor TV installations, IP55 is exactly enough — higher ratings like IP65 or IP66 cost more but are only needed in splash zones (pool decks, wet areas). The **ByteFree BF-55ODTV is IP55-rated**, matching Samsung The Terrace and Sylvox Deck Pro 2.0 in the same class.

What the two digits in "IP55" mean​

IP (Ingress Protection) ratings come from IEC 60529, an international standard. Two digits after "IP":

First digit: Protection against solids (dust)​

First digit​	Meaning​	Examples​
0	No protection	—
1	Against objects >50mm (hand)	—
2	Against objects >12mm (finger)	Indoor electronics
3	Against objects >2.5mm (tools)	—
4	Against objects >1mm (wire)	—
5	Dust protected (limited ingress, no harm)	Most outdoor TVs
6	Dust-tight (no ingress at all)	Premium outdoor TVs

Second digit: Protection against liquid (water)​

Second digit​	Meaning​	Examples​
0	No protection	—
1	Dripping water vertically	Indoor TVs
2	Dripping water at 15° angle	—
3	Spraying water at 60° angle	—
4	Splashing water from any direction	Some budget outdoor TVs
5	Water jets (6.3mm nozzle, any direction)	Most outdoor TVs
6	Powerful water jets (12.5mm nozzle)	Premium outdoor TVs
7	Immersion up to 1m	Diving cameras
8	Continuous immersion	Submersible devices

IP55 breakdown:

First "5" = Dust protected (enough dust to not harm electronics; not 100% dust-tight)

Second "5" = Water jets rated — withstands water spray from any direction

What IP55 actually handles (and what it doesn't)​

IP55 handles​

Heavy rain at any wind direction (water jets simulation matches gale-force rain)

Dew and humidity condensation cycles

Dust and pollen accumulation on the chassis

Pressure-washing nearby (not directly spraying the TV)

Splashes from kids playing, gardening, pool use

Snow accumulation and thaw cycles (handles moisture from melting snow)

IP55 does NOT handle​

Direct submersion (e.g., dropping the TV in a pool)

Prolonged high-pressure direct spray (e.g., pressure-washing directly at the TV's vents or connectors)

Sustained flooding (water rising above the chassis)

Tidal or wave exposure (coastal beach installations need higher)

IP55 vs IP56 vs IP65 vs IP66: the real-world differences​

Rating​	Dust​	Water​	Best for​	Price premium vs IP55​
IP54	Protected	Splashes	Deep shade, rare rain	-10 to -20%
IP55	Protected	Water jets any direction	Covered patios, decks, normal rain	Baseline
IP56	Protected	Powerful jets	Strong wind-driven rain zones	+10-20%
IP65	Dust-tight	Water jets	Pool decks, splash zones	+25-50%
IP66	Dust-tight	Powerful jets	Beach houses, harsh climate	+40-80%
IP67/68	Dust-tight	Immersion	Marine applications	+100%+

For typical U.S. residential patios: IP55 is sufficient​

Unless you have specific splash-exposure scenarios (below), IP55 handles all normal outdoor weather. The BF-55ODTV's IP55 rating matches what Samsung Terrace, SunBrite Veranda 3, and Sylvox Deck Pro 2.0 ship with — the industry standard for covered outdoor installations.

When to upgrade to IP65 or higher​

Pool deck within 6 feet of water edge — splash from cannonballs, pool play, hot tub use

Outdoor shower area — daily direct spray exposure

Beach house or marine environment — salt spray, severe storms

Commercial car wash, outdoor kitchen grill area — direct water or steam spray

For these, Sylvox Pool Pro QLED 2.0 (IP65) or Titan G300 (IP65) are purpose-built.

How IP55 is tested​

The IP rating test is standardized — not marketing claim. IP55 test procedures:

Dust test (first digit 5)​

8-hour exposure to talc-free dust in test chamber

Chamber maintains dust in suspension

Post-test inspection: dust may enter enclosure but not in quantity that impairs function

Water jet test (second digit 5)​

6.3mm nozzle, 12.5 liters/minute flow rate

Water pressure: 30 kPa (4.3 PSI) from 3 meters distance

All 6 sides of the device tested (top, bottom, 4 sides)

3 minutes per side, 18 minutes total exposure

Post-test: device must function normally and no water ingress in areas that would cause failure

These are rigorous tests performed by independent labs. A TV certified IP55 has passed them.

The hidden problem: IP rating at specific openings​

IP55 is the chassis rating, but the TV has openings:

HDMI ports

USB ports

Power input

Cable glands

Remote sensor window

Most outdoor TVs maintain IP55 at these openings via:

Rubber grommets that seal around inserted cables

Spring-loaded cover flaps over unused ports

Water-tight power inlet connectors

Common failure point: If you leave an HDMI or USB port uncovered and unused, water can enter there. Ensure all unused ports have their covers in place.

How IP55 degrades over time (and how to maintain it)​

IP55 rating is initial certification. Over 5–10 years outdoors, seals can degrade:

Rubber gaskets compress permanently (compression set)

UV exposure cracks plastic seals

Dust accumulation prevents seals from seating properly

Mechanical flex from wind or mounting stress separates seals

Maintenance schedule to preserve IP55 performance:

Interval​	Action​
Quarterly	Wipe seals clean of debris
Annually	Inspect gaskets for cracks, replace if needed
2–3 years	Lubricate flap covers with silicone grease
5 years	Consider IP rating re-verification, check for visible seal degradation

The BF-55ODTV ships with a maintenance guide covering these procedures.

IP55 vs other outdoor TV specs​

How IP55 fits alongside other outdoor TV specs:

Spec​	What it measures​	IP55 relevance​
Brightness (nits)	Daytime watchability	Independent of IP
Operating temperature	Climate range	Independent of IP
Chassis material	Longevity	IP55 + all-metal = best combo
Smart OS	Streaming quality	Independent of IP
UV panel rating	Sun resistance	Independent of IP

IP55 is necessary but not sufficient. A TV needs IP55 + all-metal chassis + UV-rated panel + sufficient brightness + proper smart OS to be a complete outdoor solution. The BF-55ODTV hits all five.

How IP55 compares to other durability ratings​

MIL-STD-810G (military specifications)​

Sometimes marketed alongside IP ratings. MIL-STD-810 tests:

Drop resistance

Vibration tolerance

Humidity cycling

Temperature extremes

Valuable for commercial/industrial outdoor TVs; less critical for residential installations.

IK impact rating​

IK ratings measure impact resistance (hail, thrown objects, vandalism). IK08 is common on outdoor TV screens — resists a 5-joule impact (approximately a thrown baseball at 30 mph).

NEMA (North American)​

NEMA rating is the U.S. equivalent of IP. NEMA 4 roughly equals IP66; NEMA 3R roughly equals IP55. Most outdoor TVs use IP ratings; NEMA is more common on industrial electrical enclosures.

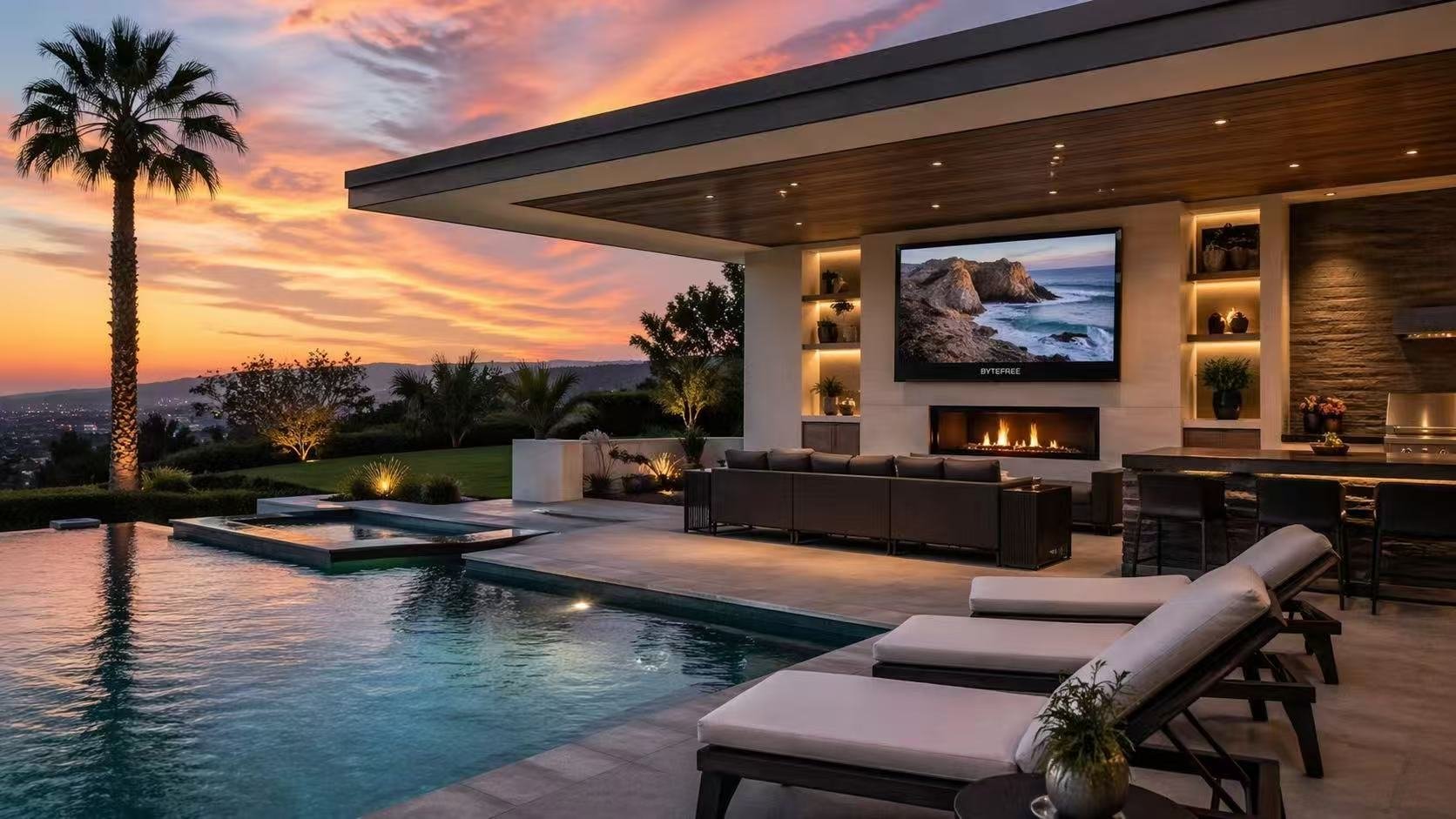

Is IP55 enough for a pool deck?​

Borderline. IP55 handles water jets (approximately heavy rainstorm), but not direct submersion or prolonged high-pressure spray from cannonball splashes.

For TVs within 6+ feet of a pool edge:

IP55 (BF-55ODTV): Works for most pool deck installations where splash is occasional

IP65 (Sylvox Pool Pro QLED 2.0): Purpose-built for direct-splash pool environments

IP66: Overkill unless severe weather exposure

For the **BF-55ODTV on a partially-covered pool deck 8+ feet from water**, IP55 is sufficient. Closer to water, consider IP65.

Common IP55 myths debunked​

Myth: "IP55 means the TV is waterproof."​

False. IP55 means splash-proof (water jets). Waterproof = IP67 or higher (submersion-rated). IP55 handles rain but not pool-level water exposure.

Myth: "IP65 is always better than IP55."​

True in absolute terms, but not always worth the premium. For covered patios with normal rain exposure, IP55 is exactly what's needed. IP65 is only worth the extra cost for specific splash-zone installations.

Myth: "I can pressure-wash my IP55 TV."​

Nuanced. Pressure-washing near the TV is fine. Pressure-washing directly at the TV exceeds IP55's 30 kPa water jet spec — can force water past seals. Wipe with a damp cloth instead.

Myth: "IP55 means dustproof."​

Partial. First digit "5" = "dust protected" meaning some dust ingress is allowed but won't harm function. True dust-tight is "6." For most residential outdoor conditions, "5" is sufficient — you'll see dust on the exterior, not inside the chassis.

FAQ​

Is IP55 enough for an outdoor TV?​

Yes, for 80% of installations. Covered patios, decks, porches, pool decks with indirect water exposure, and normal rain environments. Upgrade to IP65 only for direct splash zones.

What happens if an IP55 TV gets sprayed directly by a pressure washer?​

Water pressure above 30 kPa can force past seals. Short-term exposure probably OK; sustained direct pressure-washing can cause ingress. Don't pressure-wash the TV directly; wipe with a damp cloth.

Is IP66 worth double the price?​

Only for specific harsh environments: beach houses, marine installations, outdoor commercial bars in severe weather zones. For residential covered patios, IP55 is sufficient.

Does IP55 protect against snow?​

Yes. IP55 handles the moisture from melting snow and freeze-thaw cycles. Combined with the BF-55ODTV's –22°F to 122°F operating range, it handles cold-climate outdoor use.

How can I tell if a TV is really IP55 or just marketing?​

Verify: (1) Manufacturer publishes the rating in specs, (2) Rating certification mentioned in product documentation, (3) All openings (ports, cable glands) have visible seals or flaps. If unsure, ask the manufacturer to provide the IP certification document.

Does IP55 affect picture quality?​

No. IP55 describes the chassis only, not the screen or internal components. Picture quality is determined by the panel technology, nit rating, HDR support, and smart OS — all independent of IP rating.

Verdict​

IP55 is the right weatherproof standard for most residential outdoor TV installations. It's neither overkill for covered patios nor insufficient for normal rain exposure. The **ByteFree BF-55ODTV's IP55 rating** matches what premium brands like Samsung Terrace and SunBrite Veranda 3 ship with — you're getting the industry-standard outdoor weather protection without paying a premium for unused IP65/IP66 capacity.
