BenQ has released a new ultra-short-throw projector, the TH690SX, priced at $1,099. The biggest highlight of this projector is the 0.65inch chip with a 120Hz refresh rate. Below are the specifications of the BenQ Ultra Short Throw Projector TH690SX.

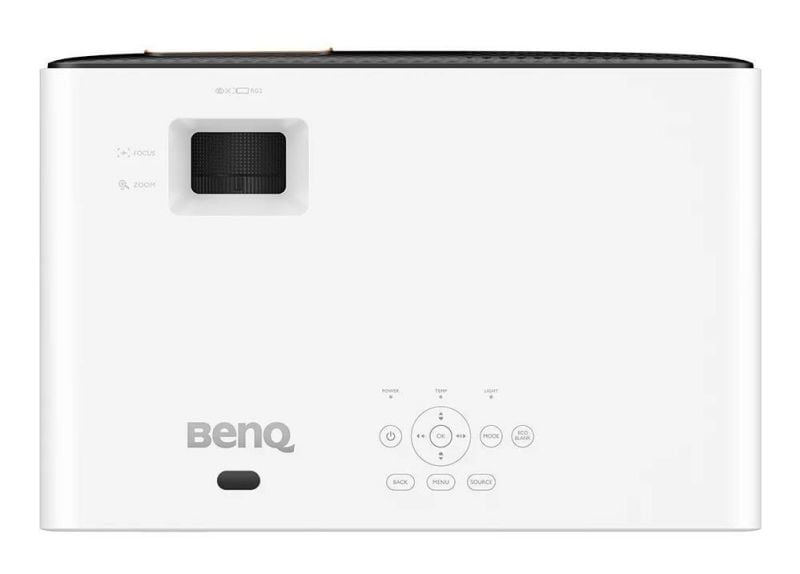

The appearance of BenQ TH690SX is very technological. It uses a black and white color scheme, a frame of infrared rays surrounds the 1.2x large zoom lens, and the square body edge is designed with rounded chamfers. Users do not need to worry about the size of the space and placement, it has a variable projection ratio of 0.69~0.83, and a 100-inch screen can be projected from 1.5 meters.
BenQ TH690SX built-in 0.65-inch large chip, equipped with 4LED technology. Colors are true to life with 98% Rec.709 and 86% DCI-P3 color accuracy.
TH690SX is 1080p resolution, with 120Hz high refresh rate and 8.3ms low latency. Brightness is 2300 lumens with a contrast ratio of 500000:1.
In addition, the TH690SX has 2 built-in 5W speakers, tuned by the treVolo Golden Ear team. What do you think of this BenQ Ultra Short Throw Projector? Comments are welcome.
| Model Name | TH690ST |
| Appearance |
|
| Display | |
| Brightness (ANSI lumens) | 2300 |
| Native Resolution | 1080P (1920x1080) |
| Native Aspect Ratio | 16:09 |
| Contrast Ratio (FOFO) | 500,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | 4LED |
| Light Source Life | a. Normal 20000 hrs ,b. ECO 30000 hrs ,c. SmartEco 20000 hrs |
| Optical | |
| Projection System | DLP |
| Throw Ratio | 0.69 ~ 0.83 |
| Zoom Ratio | 1.2x |
| Lens | F / # = 2.6~2.78 , f = 10.2~12.24 mm |
| Projection Offset (Full-Height) | 102.50% |
| Keystone Adjustment | 2D, (Auto) Vertical ± 30 degrees; Horizontal ± 30 degrees |
| Picture | |
| DCI-P3 Coverage | 84% |
| Rec. 709 Coverage | 98% |
| Picture Modes | 3D ,Bright ,Cinema ,Game ,HDR Game ,HDR10 ,HLG ,Living Room ,Sports ,User |
| Compatibility | |
| Input Lag | 16.7 ms (1080p@60Hz),33.4 ms (4K@60Hz) *downscaling to 1080p,8.3 ms (1080p@120Hz) |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~135KHz |
| Vertical Scan Rate | 23~120Hz |
| I/O Interface | |
| HDMI in | HDMI-1 (2.0b/HDCP2.2) ,HDMI-2 (2.0b/HDCP2.2) |
| USB Type A | USB Type A-1 (2.0/Power Supply2.5A/Service) |
| RS232 in (DB-9pin) | (x1) |
| Audio | |
| Speaker | (x2) ,5W Chamber |
| Audio in (3.5mm Mini Jack) | (x1) |
| Audio out (3.5mm Mini Jack) | (x1) |
| Audio out (S/PDIF) | Multi-Channel, RAW |
The appearance of BenQ TH690SX is very technological. It uses a black and white color scheme, a frame of infrared rays surrounds the 1.2x large zoom lens, and the square body edge is designed with rounded chamfers. Users do not need to worry about the size of the space and placement, it has a variable projection ratio of 0.69~0.83, and a 100-inch screen can be projected from 1.5 meters.
